Discover the Ultimate Sound Experience
Super MM Phono
Elevate your audio setup with our meticulously crafted phono stage, designed for audiophiles seeking unparalleled sound quality.
Product Description
Unmatched Craftsmanship and Sound Quality
Redesigned from the ground up! Now featuring an over-built outboard tube rectified and regulated power supply. Many updates to the circuit and componentry throughout to punch well above its weight class!

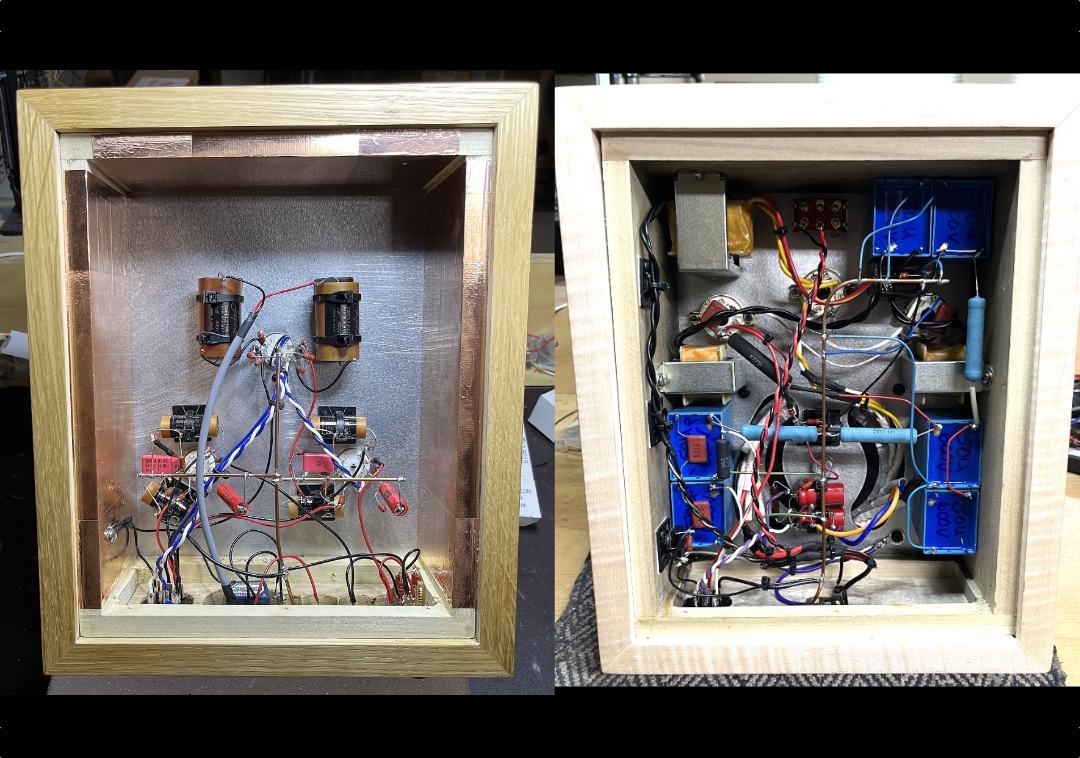

Pulling out the stops on this design, I now use an outboard power supply to isolate all power supply noise from the signal path. This coupled with dual toroidal transformers for the B+, dual chokes, lifetime-rated film capacitors and tube regulation ensures robust power filtering and delivery! A heavy gauge pure OFC 3 foot umbilical cable connects to the signal chassis. (2) low-noise 12AX7s with shields perform the RIAA amplification duty and the output is delivered via a low impedance cathode follower. Shielded signal wiring is used throughout as well as Miflex KPCU Copper output coupling capacitors. All of this adds up to the phono stage performing at an entirely different level than before. Lower noise, increased dynamics and plenty of micro detail delivered with the smoothness you would expect from a top notch phono stage!
For Purchase Inquiries Please Use the Contact Form
$2475.00
Key Features
Super MM Phono
- 1 Set of Stereo MM Phono inputs
- 1 set of stereo line level outputs
- True analog design
- 100% point to point wired
- (2) 12AX7’s for RIAA correction and gain
- (1) 12AU7 output in a low-impedance Cathode Follower arrangement
- (1) 5U4GB tube rectifier
- (2) OD3 regulator tubes for consistent voltage
- Very low noise and high resolution
- 47k / 100k (selectable) cartridge loading
- Up to 45 db of gain
- 300 ohm output impedance
- Variable output level control for source matching
Technical Specifications
Our amps feature the latest in audio technology, including:
- Life-time rated film capacitors used in the power supply
- Tube rectification and regulation
- Toroidal transformer, and dual chokes for excellent regulation and the lowest noise
- Exclusively PTP wired using only high quality stranded and solid copper wiring
- Neutrik I/O connections
- ALPS Blue Velvet output control
- Miflex KPCU Copper foil output coupling capacitors
- FR-5-50,000 hz +/-1 db
- s/n: better than 89 db
- Dimensions signal chassis: 10″ x 12″ x 6.5″
- Dimensions power supply: 10″ x 12″ x 9″
- Please message for wood/color options
- 2 year full parts and labor warranty
Experience the Pinnacle of Sound
Don’t miss out on the opportunity to elevate your audio experience with our premium hand-built amplifiers. Crafted with precision and passion, our products deliver unparalleled sound quality. Take the next step towards audio excellence today.
