Super 6SN7 Linestage

Elevate your audio setup with our meticulously crafted preamplifier, designed for audiophiles seeking unparalleled sound quality.

Product Description

Unmatched Craftsmanship and Sound Quality

Introducing the Super 6SN7 Linestage, which includes many updates over the original Special 6SN7 Linestage. An updated toroidal power supply transformer, Khozmo 64 step, relay-based remote volume, Neutrik RCA connections, Miflex KPCU copper-foil coupling capacitors, and a solid hard-wood enclosure present some of the changes made to this preamplifier!

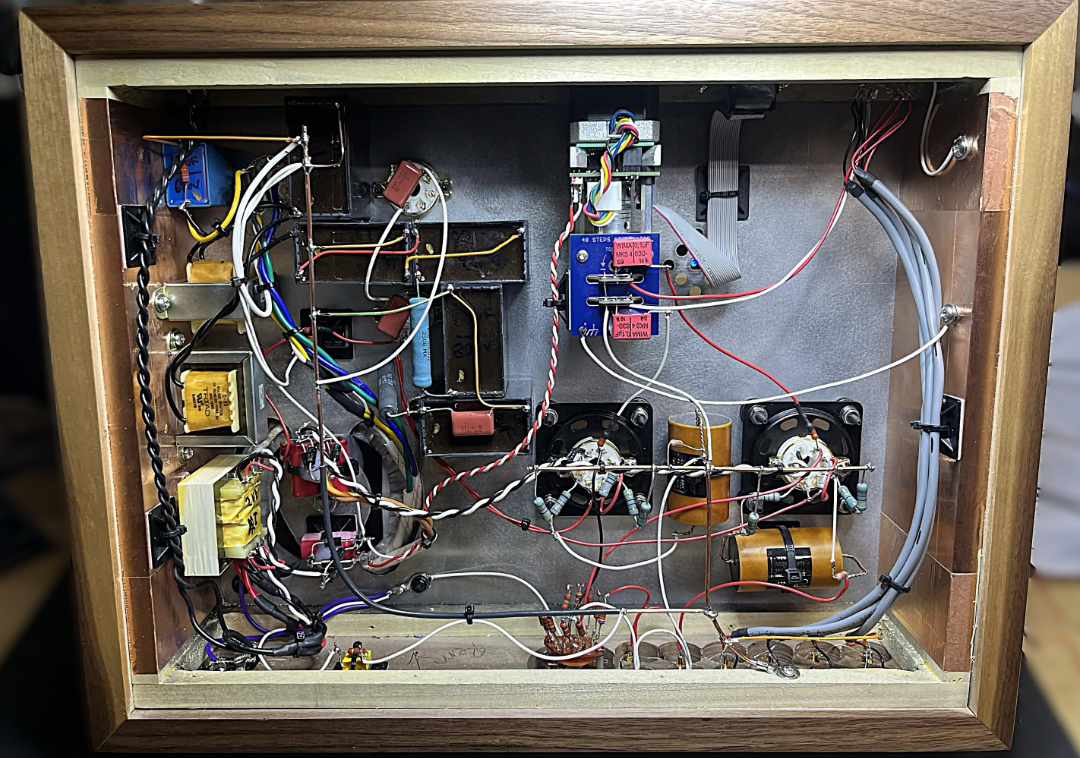

This preamplifier features a toroidal power transformer for extremely low self-noise, a 5U4GB tube rectifier, two OD3 tube regulators, Miflex copper foil coupling capacitors, Vishay resistors, and an all-film capacitor power supply combine to provide reliable power delivery with excellent bandwidth and beautiful tonality. The Input stage is direct-coupled to the cathode-follower output stage for very low distortion and excellent linearity. 4 sets of stereo inputs and 2 parallel sets of outputs with 5 position variable output level (up to 20 db). All internal wiring is 100% copper.

For Purchase Inquiries Please Use the Contact Form

$4195.00

Key Features

Super 6SN7 Linestage

  • Tube rectified and regulated power supply
  • Miflex KPCU copper-foil/paper in oil coupling capacitors
  • Khozmo 64 step relay based remote volume controller
  • DC coupled input stage fed to a low impedance cathode follower
  • Gold-plated ceramic tubes sockets
  • Gold-plated Neutrik RCA jacks
  • Fused IEC jack with integral power switch
  • Fully hand-built Walnut chassis
  • Aluminum top and bottom plates
  • Copper-lined chassis
  • 100% copper wiring used throughout

Technical Specifications

Our amps feature the latest in audio technology, including:

  • 50 kOhm input impedance
  • 300 Ohm output impedance
  • Aluminum remote with dimmable display and mute function
  • Up to 20 db gain using 6SN7s(variable per output level control)
  • Up to 50 db gain using 6SL7s (variable per output level control)
  • 4 set of stereo inputs/2 sets of stereo outputs
  • Front panel volume and input selector controls
  • 16.5″ wide X 13.5″ deep X 8.5″ tall
  • 18 lbs (unboxed)
