Jackpot Linestage

The Jackpot linestage is a progression of my original Unlimited preamplifier that allows tube rolling different noval tubes in the front end to change the sonic flavors drastically. While the Motherlode II and XL are the best 6SN7 preamplifiers you can buy, the Jackpot is designed to be the most flexible preamplifier.

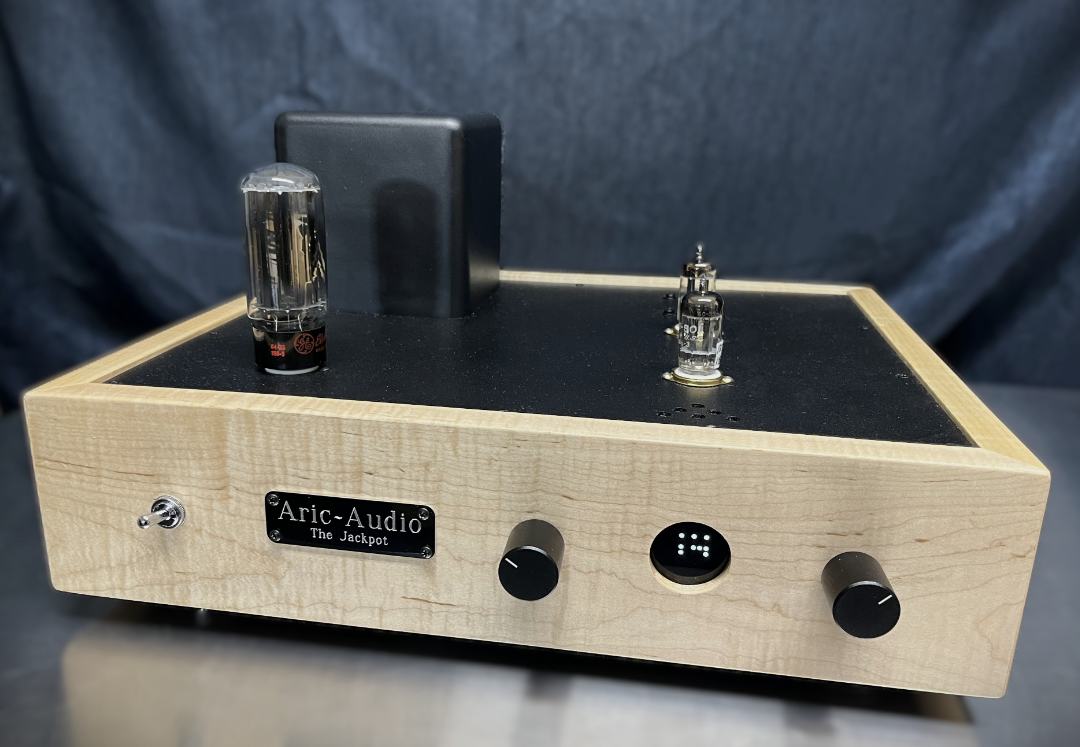

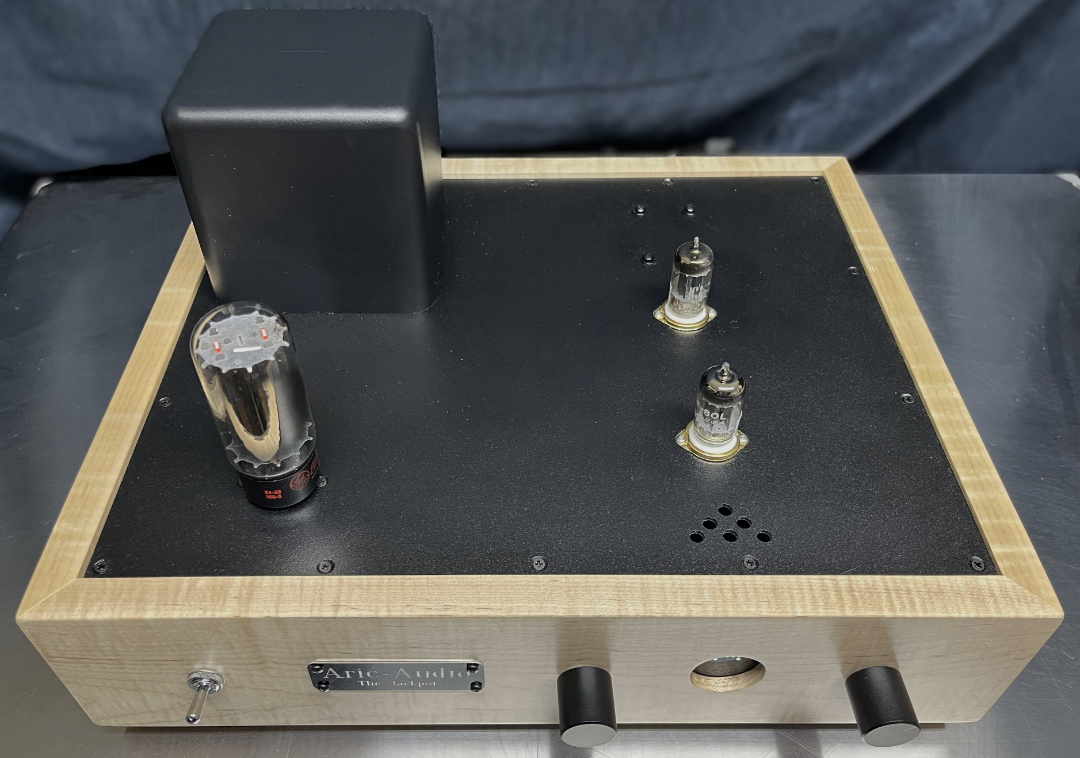

The Jackpot features a single chassis design using a 5U4GB rectifier, a 12AU7 output stage and your choice of a 12AU7, 12AT7, 5751, or 12AX7 front end. The output level control is used to go from unity gain (gain =1), for very sensitive amplifiers, to a gain of up to 40db (12AX7 gain control at MAX) to drive low sensitivity amplifiers. The sound is more dynamic and “fast” using the higher gain tubes, and more “warm” and full-bodied using the lower gain tubes. Both balanced and unbalanced versions of this linestage are available, and it features an all film capacitor power supply filter section, Toroidal power transformer, Vishay resistors throughout and Clarity Cap CMR series coupling capacitors.

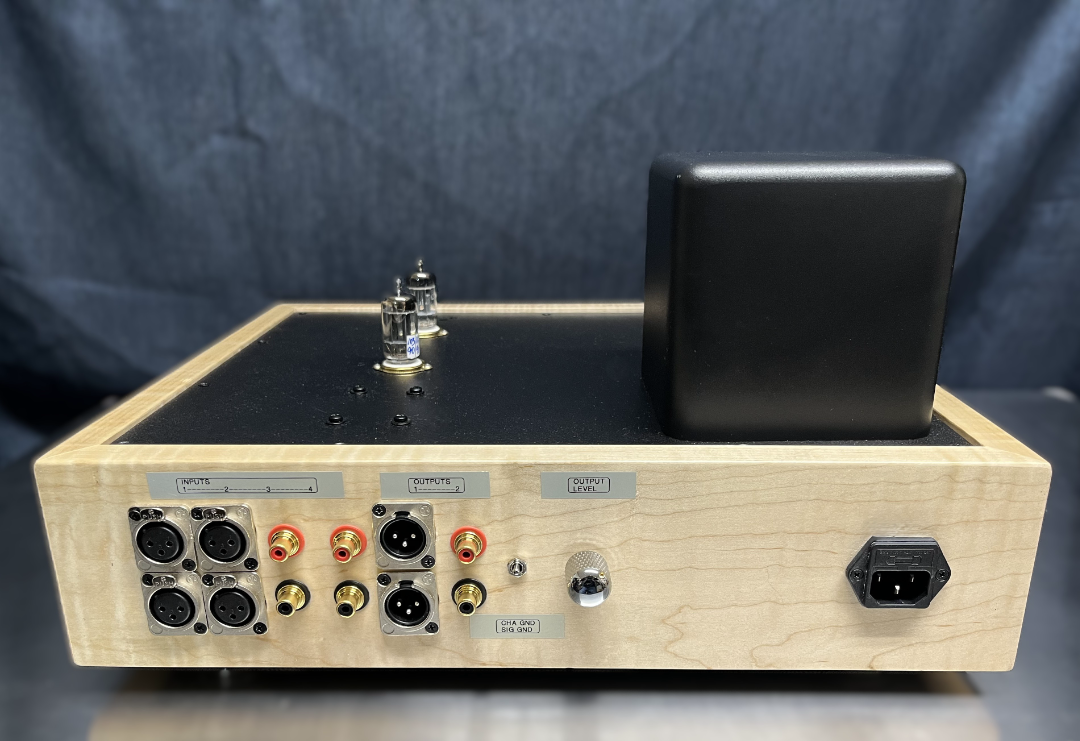

• Fully transformer balanced I/Os (balanced), all RCA I/Os (unbalanced).
• 4 sets of stereo inputs and 2 sets of stereo parallel outputs.
• 5 position output level control
• Khozmo 48 step motorized remote volume control
• 3 button aluminum remote control (Vol +/- and disp. dimmer)
• Toroidal power transformer
• All gold-plated tube sockets and I/O jacks
• Clarity Cap CMR coupling capacitors
• Tube rectified using a 5U4GB rectifier
• Output stage uses a single 12AU7
• Input stage can use 12AU7, 12AT7, 5751, or 12AX7 (comes with a 5751 front end)
• Vishay resistors are used throughout
• All film capacitors in the power supply
